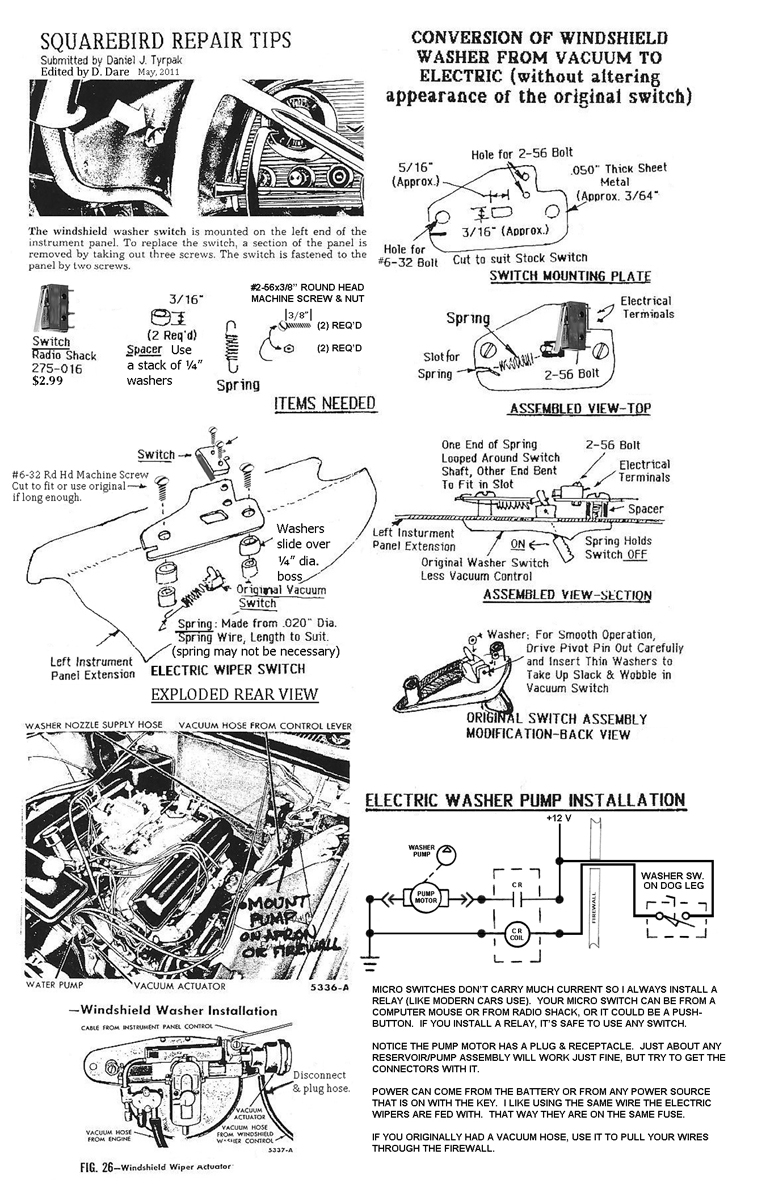

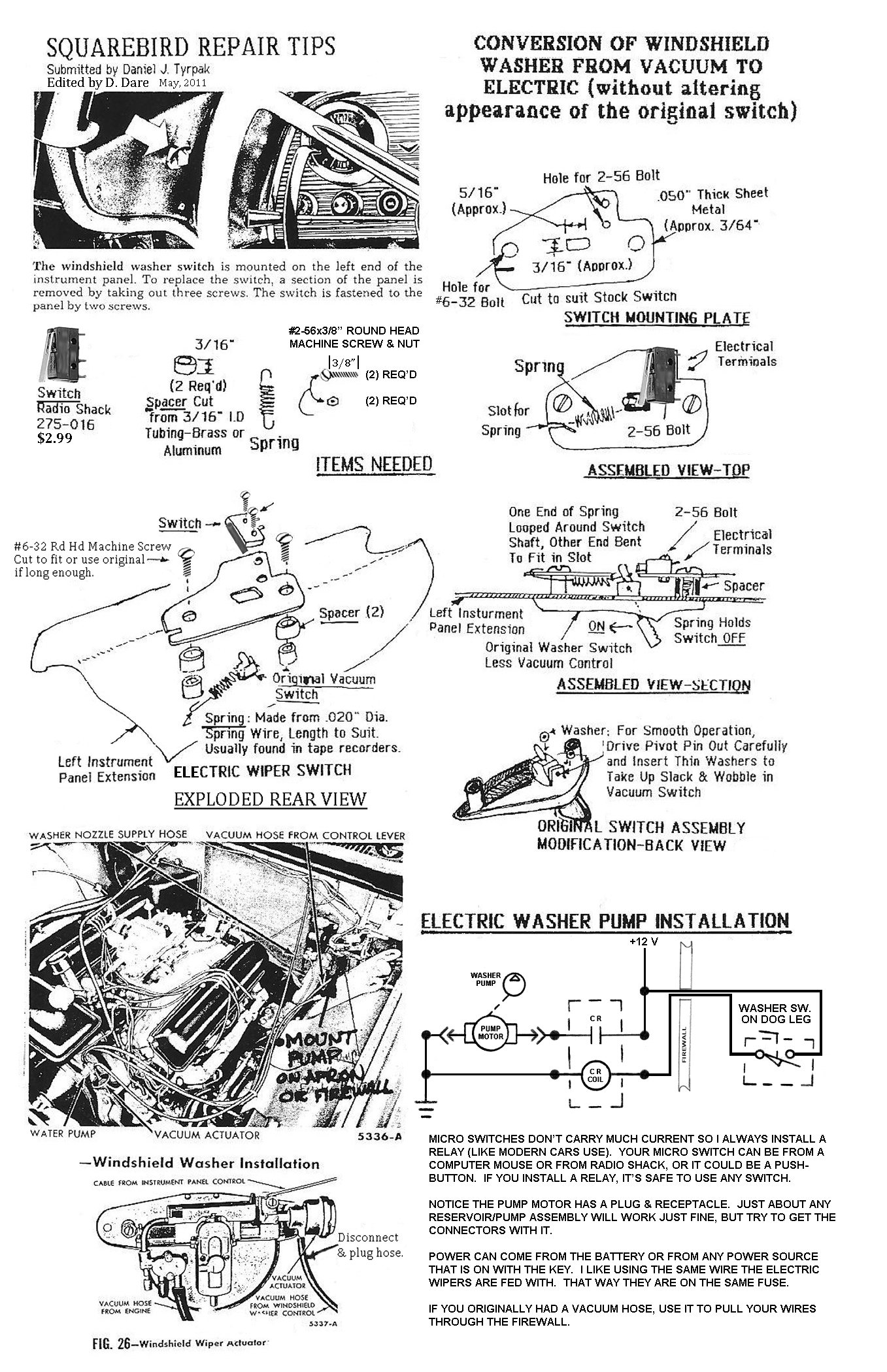

Click on the picture for a printable size. The Radio Shack Switch listed below may no longer be available. Use this Micro Switch obtainable from Amazon or other sources. Amazon Micro Switch

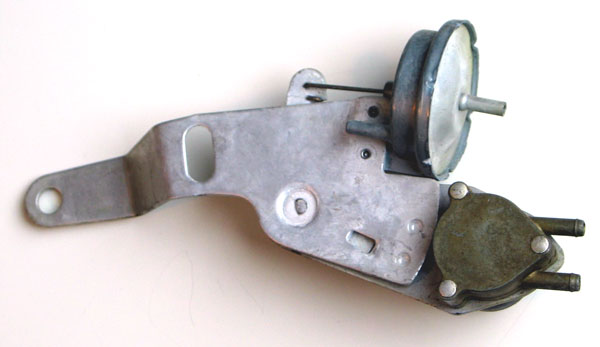

#1

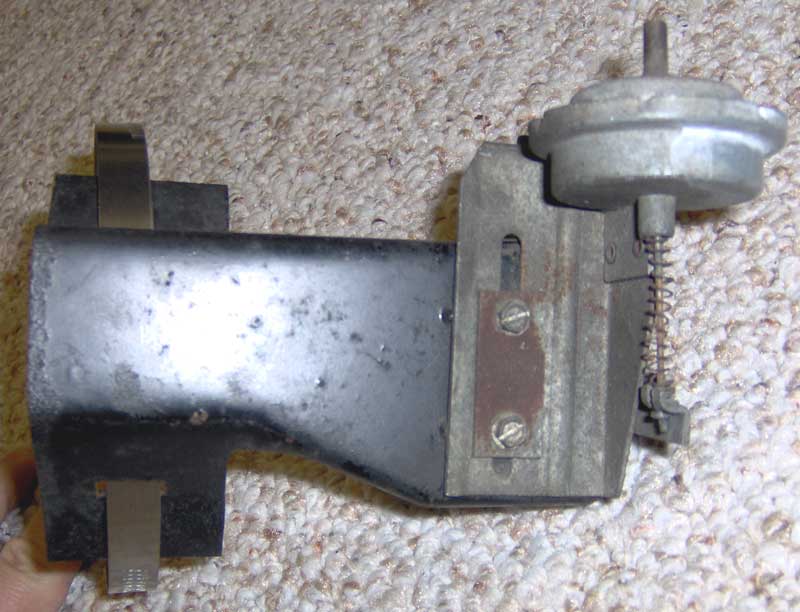

#2

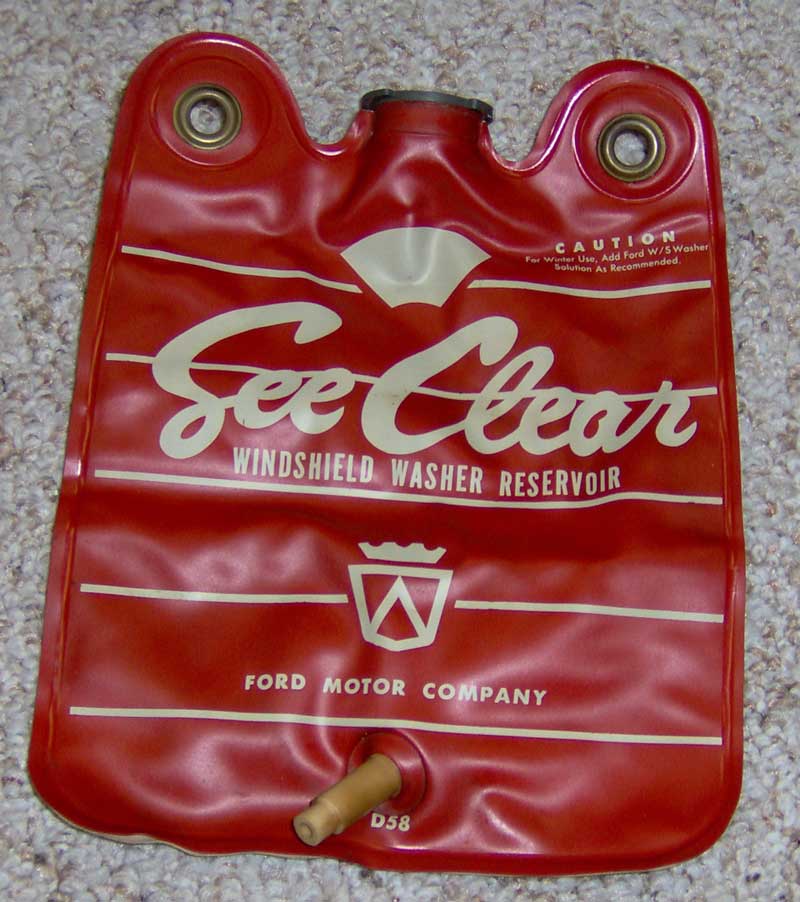

#3

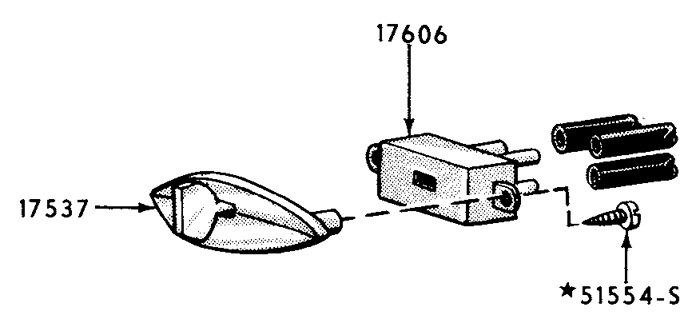

#4

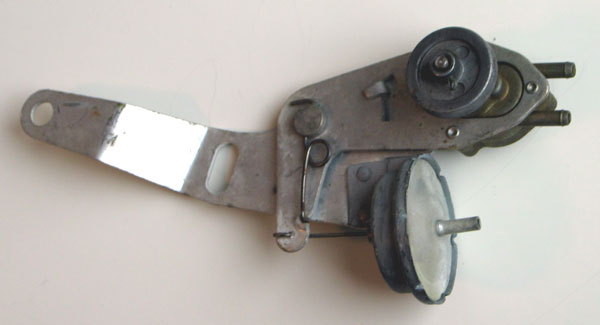

#5

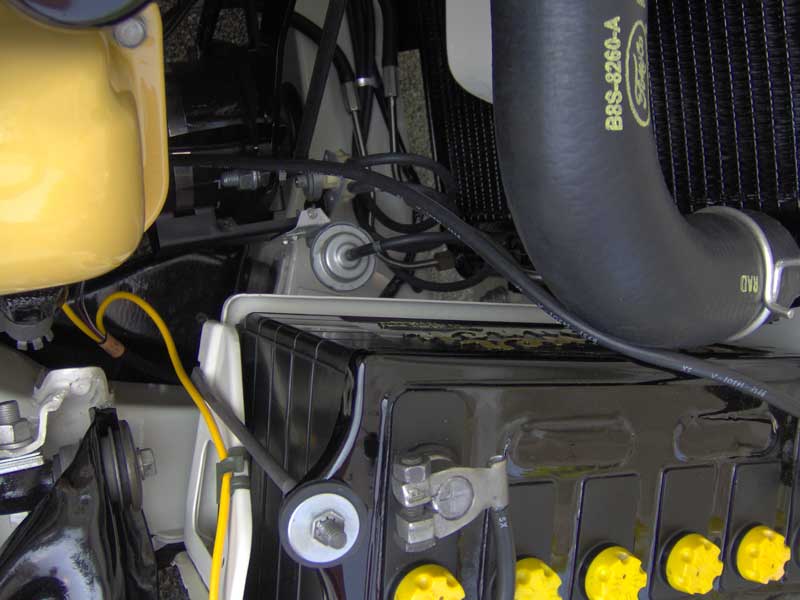

#6

#7

#8

#9

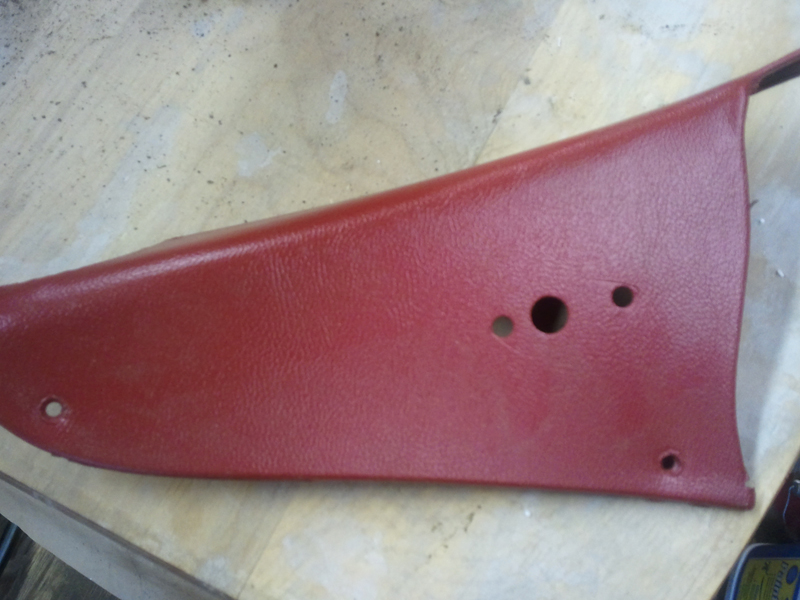

The #6-32 screw boss OD measures .268".   A 1/4" standard Flat Washer's center measures .285", so it fits perfectly.
Stack enough washers to fill the 3/16" gap between the new plate and the Instrument Panel Extension.

#10

#11
I used a 18Ga wire nail to drive the roll pin out.  I am disassembling for easier chrome plating.

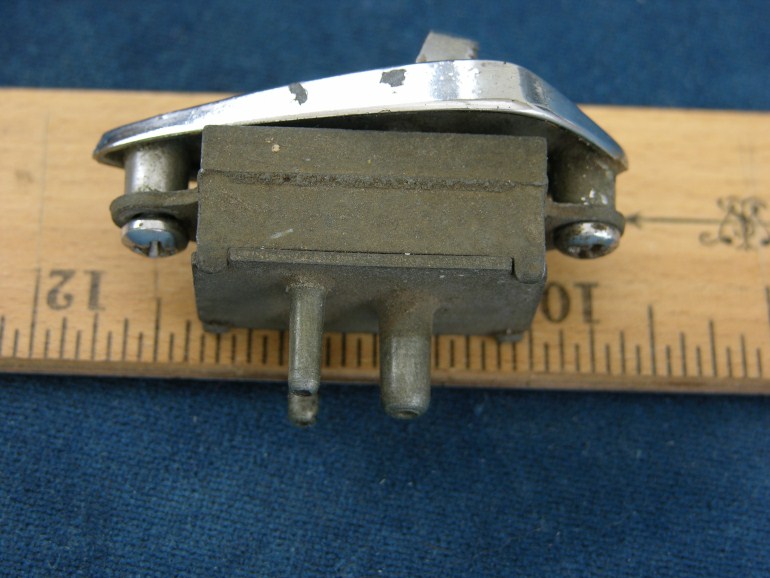

This is the limit switch I will use.  All of these parts are tiny.

#12

#13
Three amps (AC) is not a lot of load, but it's perfect for a 12-VDC relay coil.  I formed the roller arm to suit
my application.
