Specifications

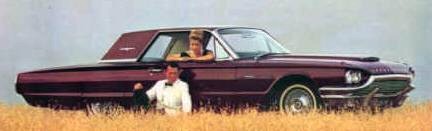

1964 Thunderbird ...welcome to the jet age!
ENGINE CODES 9 Z	390 Cubic Inch V-8 Engine (Researching Horsepower) (Low octane; export only)   4-Barrel Ford Carburetor/Dual Exhaust System Thunderbird 390 Special V-8 (300 Horsepower)   4-Barrel Ford Carburetor/Dual Exhaust System Dipstick Specifications: Part number: C2SZ-6750-A (standard) Measurements: 24.18" shield to FULL mark 25.90" shield to ADD mark 27.28" shield to end of dipstick
TRANSMISSION CODES 4	Cruise-O-Matic (Automatic, 3-Speed)
REAR AXLE CODES 1 4 A D	3.00:1 3.25:1 3.00:1 Equa Lock 3.25:1 Equa Lock
WHEELBASE Length Width Height Weight	113.2 Inches 205.4 Inches (Overall) 77.1 Inches 52.5 Inches (Hardtop and Landau) 53.3 Inches (Convertible) 4,431 (Hardtop) 4,586 (Landau) 4,441 (Convertible)
WHEELS AND TIRES Wheel Size and Construction Tire Size Correct Whitewall Stripe Size Optional Wire Wheels* Wheel Size and Construction Manufacturer Tire Size Type *Special ventilated tires required	15 Inch Welded Steel 8.15 x 15 Low Profile 4-Ply BSW 1 Inch 14 Inch 48-Spoke Chrome Plated Wire Wheels 8.00 x 14 Low Profile 4-Ply Ventilated BSW Kelsey Hayes Inner Tube
SUSPENSION (Front) Type Springs Shock Absorbers Stabilizer Steering Knuckle Wheel Bearings	Independent with Ball Joints 4.18" ID Helical Coil--Rubber-Mounted Hydraulic, Telescopic, Vertical Mounting Link-Type Mounting, Rubber-Bushed Integral Spindle and Steering Arm Opposed Taper Roller
SUSPENSION (Rear) Type Number of Leaves Leaf Length x Width Spring Shackles Shock Absorbers	Longitudinal Semielliptic Leaf Springs with Rubber-Bushed Attachments Five 60.00" x 2.5" Tension-Type Hydraulic, Telescopic, Angle Mounting
BRAKES Brake Drum Diameter Lining Material Lining Attachment Lining Width Total Lining Area	11.09" Molded Asbestos (Original Equipment) Riveted 3.0" (Front) 2.5" Rear 238.0 Square Inches (Gross) 208.0 Square Inches (Effective)
	Transistorized Ignition System A new Thunderbird option for 1964, the transistorized ignition system cost $51.50, and was promoted as providing a hotter spark to the plugs, which resulted in more uniform firing at all engine speeds, and significantly extended spark plug life. This system also reduced current flow through the distributor breaker points, which increased their life, and allowed longer intervals between ignition tune-ups. This system was not without issues, however, and many were disabled within just a few years. This option would be discontinued after the 1966 model year.
Thunderbird's Deep Well Trunk In response to concerns of inadequate space in the luggage compartment from owners, Ford introduced the "deep well" trunk on the Thunderbird in 1964. This was accomplished by relocating the fuel filler to the left quarter panel, and moving the fuel tank forward to a position just above and behind the rear axle. This created a shelf at the forward end of the luggage compartment, which houses the spare tire on Hardtop and Landau models, and the top pump, motor, lift cylinders, relays, valves, solenoids, and hydraulic lines on Convertibles. The spare tire is located at the bottom of the well on Convertibles, and contents of the luggage compartment are protected from soiling on this particular model by a spare tire cover, provided as standard equipment.
