The following information was provided to us by fellow member, Nyles Beuchel ~ Tbird1044. Thank you very much, Nyles!

First, here is an article regarding the lubricating of the Trico vacuum operatored windshield wiper motor. Notice that this article advocates the use of brake fluid. However, there is an addition to this article that states that brake fluid should not be used due to its possible damage to your paint job. Use a light machine oil instead. Here is the link to that article.
Lubricating The Trico Vacuum Wiper

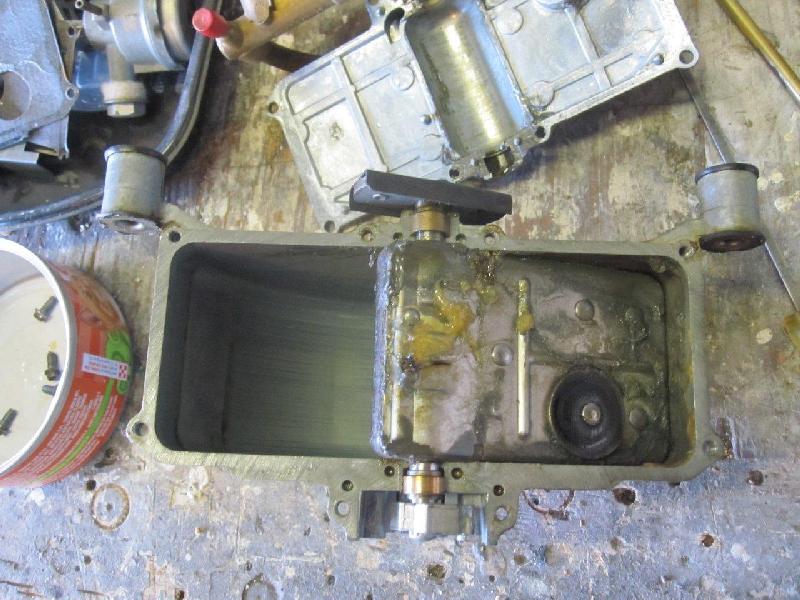

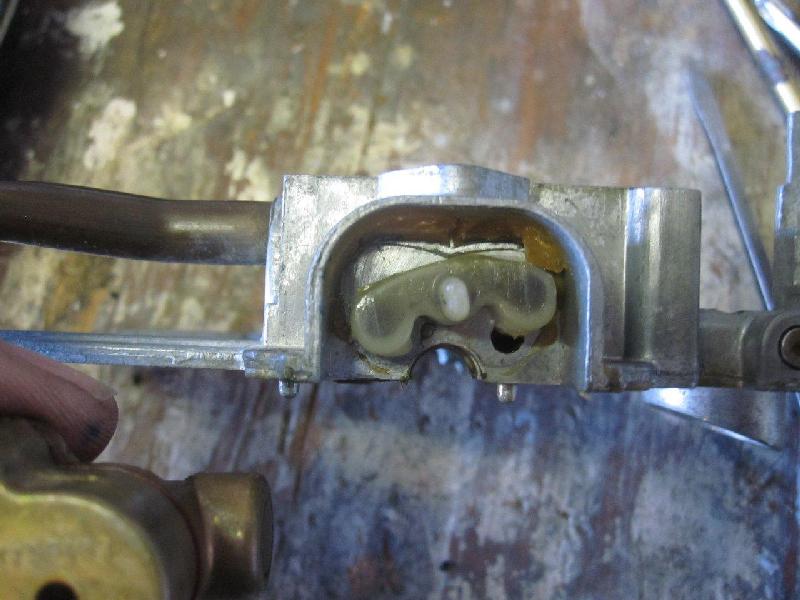

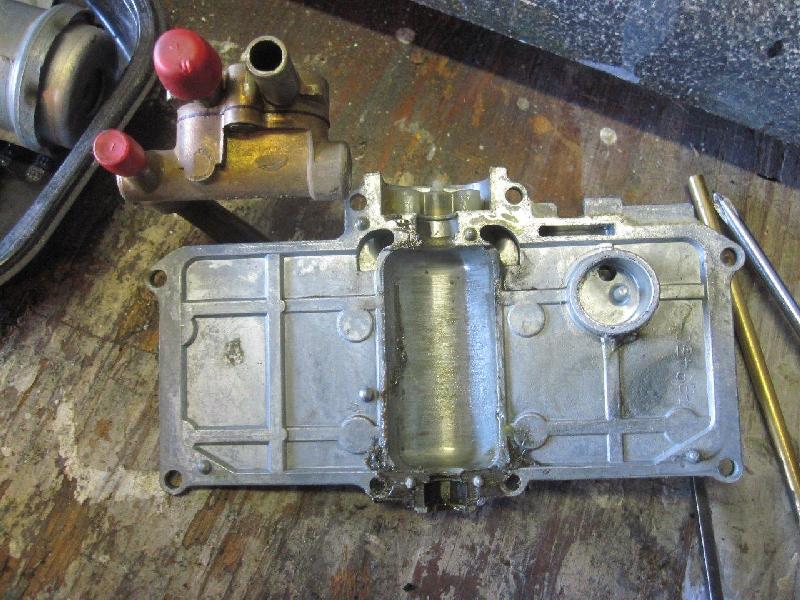

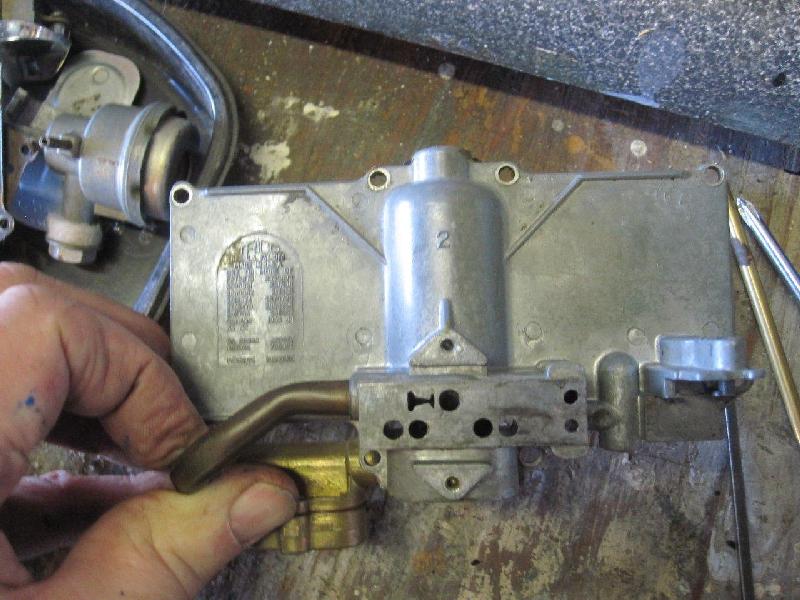

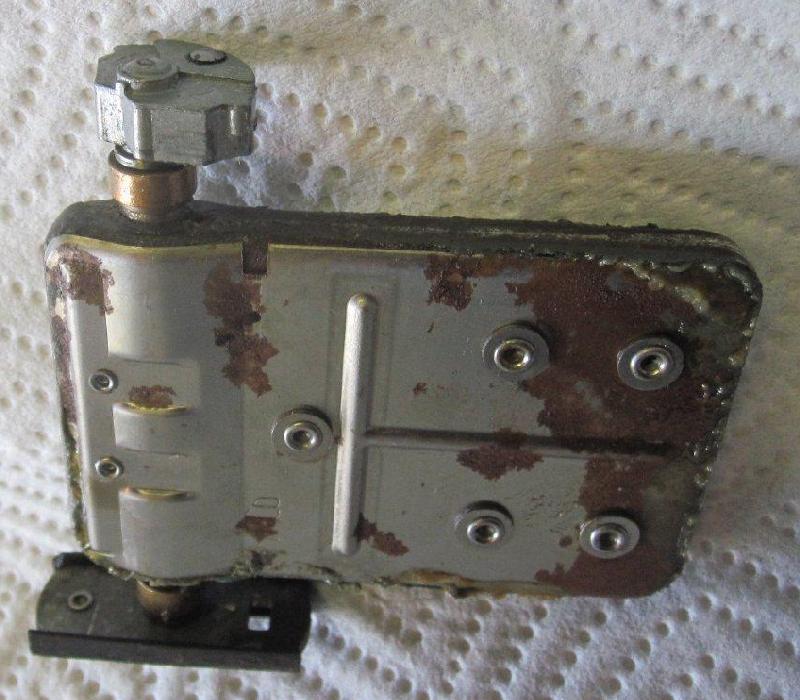

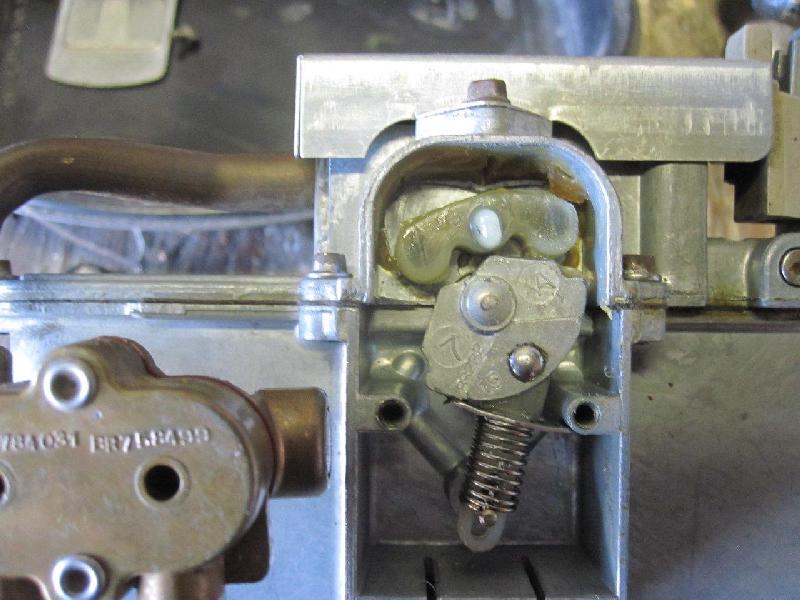

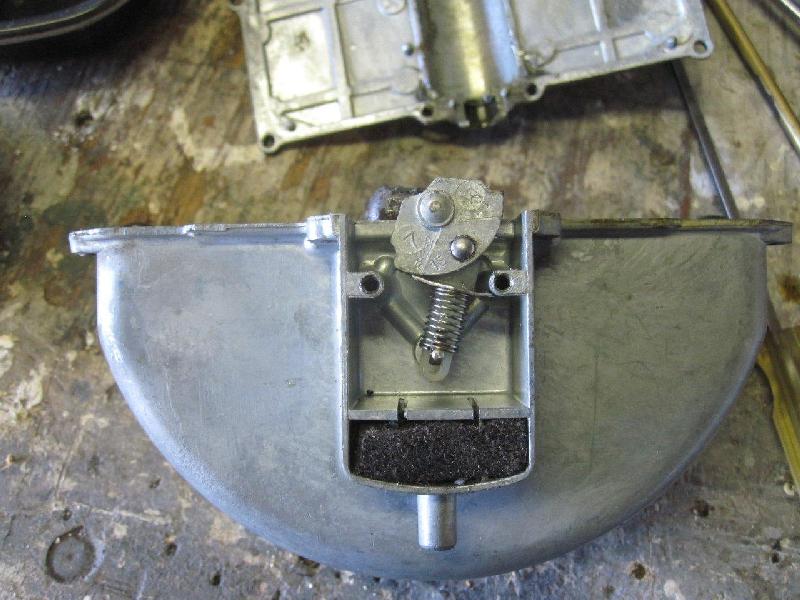

Here are pictures of the wiper motor broken down for lubricating and rebuilding.

Created 30 March, 2013

Last Edited: 30 March, 2013
